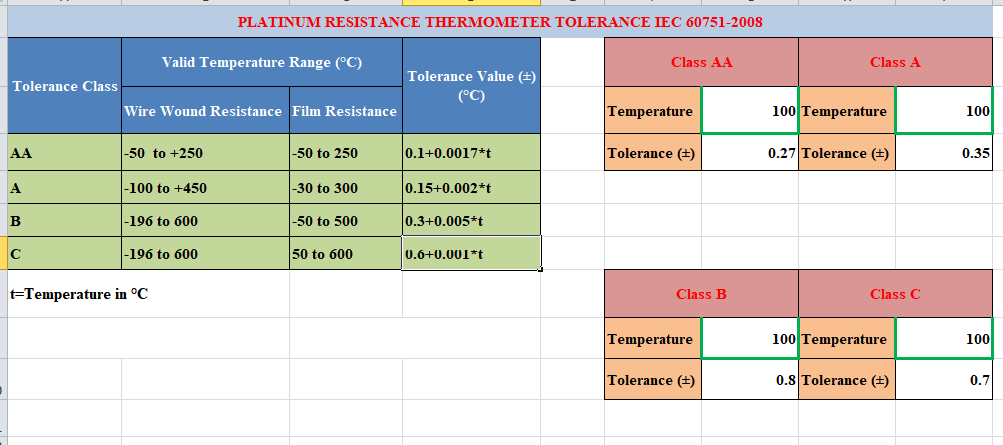

ACCURACY OR MAXIMUM PERMISSIBLE ERROR OF PLATINUM RESISTANCE THERMOMETER AS PER IEC 60751-2008

-

 Rtd has 4 types tolerance Class

  1. AA
  2. A
  3. B
  4. C
AA has the highest tolerance.

Tolerance Value of the AA RTD is

0.1+0.0017*t

Here t is the "t=Temperature in °C"

Tolerance Value of the A RTD is


0.15+0.002*t


Here t is the "t=Temperature in °C"
Tolerance Value of the B  RTD is


0.3+0.005*t


Here t is the "t=Temperature in °C"


Tolerance Value of the C  RTD is

0.6+0.001*t

Here t is the "t=Temperature in °C"



if you want this excel sheet, comment below.
